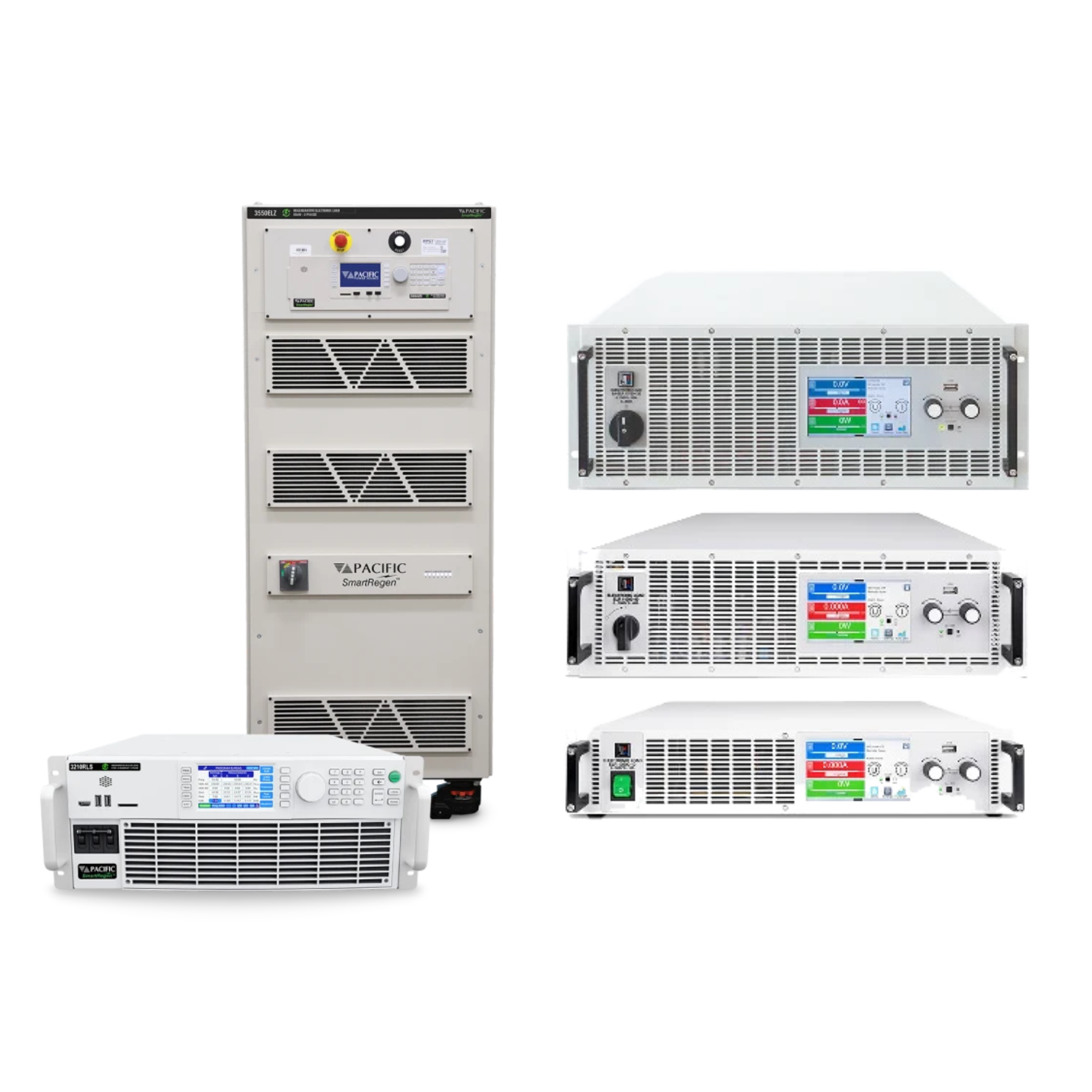

Regenerative AC and DC Electronic Loads
From R&D validation to high power system testing
Caltest Instruments provides regenerative AC and DC electronic loads for accurate, efficient testing from bench to full system level.
Our regenerative AC/DC electronic loads support a wide range of applications and provide accurate, efficient testing from bench to full system-level validation. Caltest Instruments offers high-performance solutions from leading manufacturers such as Pacific Power and EA Elektro-Automatik.
AC electronic loads support up to 1250 Vdc and 350 Vrms AC. You use them to test AC sources, inverters, UPS systems, and grid tied equipment. Regenerative and unidirectional models give flexibility and reduce energy loss.
DC electronic loads support batteries, power supplies, DC DC converters, fuel cells, and inverters. The EA ELR Series delivers 1.5 kW to 30 kW per chassis and scales up to 3.84 MW. Energy recovery reaches >96% energy, reducing heat, noise, and HVAC costs..
Perform R&D, production, and compliance testing with lower energy use and high performance.
Regenerative AC & DC E-load
RLS SERIES
Compact, Regenerative AC & DC Load
Up to 756kVA+
This high-power density Regenerative AC/DC Load Simulator is designed for testing any AC and DC load application with advanced transients.
Power: 6kVA to 21kVA, Up to 756KVA
Form: 1, 2, and 3 phase
Voltage: 30-350Vac L-N /0 606Vac L-L / 0 –
+475Vdc
Frequency: Up to 1,200Hz
ELZ SERIES
High Power Regen AC & DC Load
Up to 1.1MW+
Fully regenerative 4-Quadrant AC and DC
load with optional PHIL for testing any AC
and DC load applications.
Power: 30KVA to 1.1MVA+
Form: 1, 2, and 3 phase
Voltage: 5-220Vac L-N / 9-380V L-L and 5-
440Vac L-N/ /9-760V-LL
Frequency: 15Hz-1000Hz
Regenerative High Power DC E-load
EA-ELR SERIES
DC Regenerative Electronic Loads
Up to 3.84MW
Regenerative DC Electronic Loads recover up
to 96% of sunk energy, feeding it back into
the facility or grid instead. Scale power up to
3.94MW
Power: Up to 30kW; Parallel up to 3.84MW
Form: 1 or 3 channel
Voltage: Up to 2000V
Current: Up to 1000A
Select the electronic load that is right for you
Battery Testing
EV Powertrain Test
Renewable Energy Test
Power Supply & Converter Test
FAQ
An electronic load is used to simulate real electrical loads for testing batteries, power supplies, inverters, and EV systems in R&D, production, and validation environments.
AC electronic loads test AC equipment like UPS and inverters, while DC electronic loads are used for batteries, DC power supplies, and EV components.
Regenerative electronic loads return energy to the grid, reducing electricity costs, heat generation, and cooling requirements—ideal for high-power testing in India.
Yes, electronic loads are widely used for EV powertrain testing, battery validation, EVSE testing, and renewable energy applications across India.
Yes, modern electronic loads are scalable from lab-level testing to multi-megawatt systems, supporting industrial, automotive, and energy sector requirements.
