RLS Regenerative Load Simulator

🔍

RLS Series

Compact Regenerative AC & DC Load, 6kVA to 180kVA

The Regenerative AC/DC Load Simulator (RLS Series) is a versatile, programmable electronic load designed to support a wide range of AC and DC testing applications. It delivers 6–21 kVA in a compact 4U form factor, with scalable power capacity up to 180 kVA. Featuring true 4-quadrant operation, the RLS Series supports multiple AC and DC emulation modes and offers flexible configurations, including single-phase, split-phase, and three-phase setups. It is capable of both steady-state and transient testing, making it an ideal solution for comprehensive load simulation and validation.

Power:

Up to 756kVA+

Voltage:

Dual Range30-350Vac
L-N /0-606Vac L-L / 0 – ±475Vdc

Frequency:

Up to 1,200Hz

Why Choose RLS Series

High Power Density

Compact 4U design with scalable power up to 756kVA/kW

Regenerative Power

Greater than > 90% energy efficiency saves energy and costs

Versatile Load Performance

Several Load Modes: Constant Current (CC), Constant Resistive (CR), Constant Power (CP)

Ultra Flexible Configuration

AC, DC input and 6-form configurations for multi-channel capability

Key Specifications

Single, Split, Three-Phase
Modular, scalable power 6kVA up to 21kVA in 4U
Up to 180kVA in a single 19″ cabinet
Constant Power Voltage Range: 30-350Vac L-N /0-606Vac L-L / 0 – ±475Vdc
15Hz-1200Hz
Full power available in AC and DC input capability; Flexible 6 Form Configuration
Full Galvanic Isolation protects users and units under test
20% Extra current over competitor from 120V to 200V
Advanced waveform capture & scope function
Special inrush current application transient programming
AC Modes: Constant Current, Constant Power & Apparent Power, Constant Resistance, Constant Voltage, CC+CR, CC / CS Rectifier Mode 1ø & 3ø
DC Modes: Constant Current, Constant Power, Constant Resistance, Constant Voltage, CR+CC

Harmonics measurement for voltage and current on all phases
Sine, Square, Triangle, THD and Arbitrary waveforms
3 Phase AC input with Active PFC
200 programs for transient testing (List, Pulse, Step Modes)
380V-480V 3 Phase AC input with Active PFC
Precision True-RMS metering of Volts, Amps, Power, VA, Power Factor and Crest Factor
Precision Voltage Programming – 0.02% with Continuous Self Calibration (CSC)
Safety Programmable Protection Limits for real power, apparent power, over voltage and over temperature
Extensive Analog and Digital I/O for system integration
RS-232, USB, Modbus, TCP, GPIB, SCPI compatibility; IVI Instrument Drivers
CE (EMC/Safety) Marked
Built-In SmartSource Suite Remote Control Platform

Powerful, Highly Efficient Load Simulation

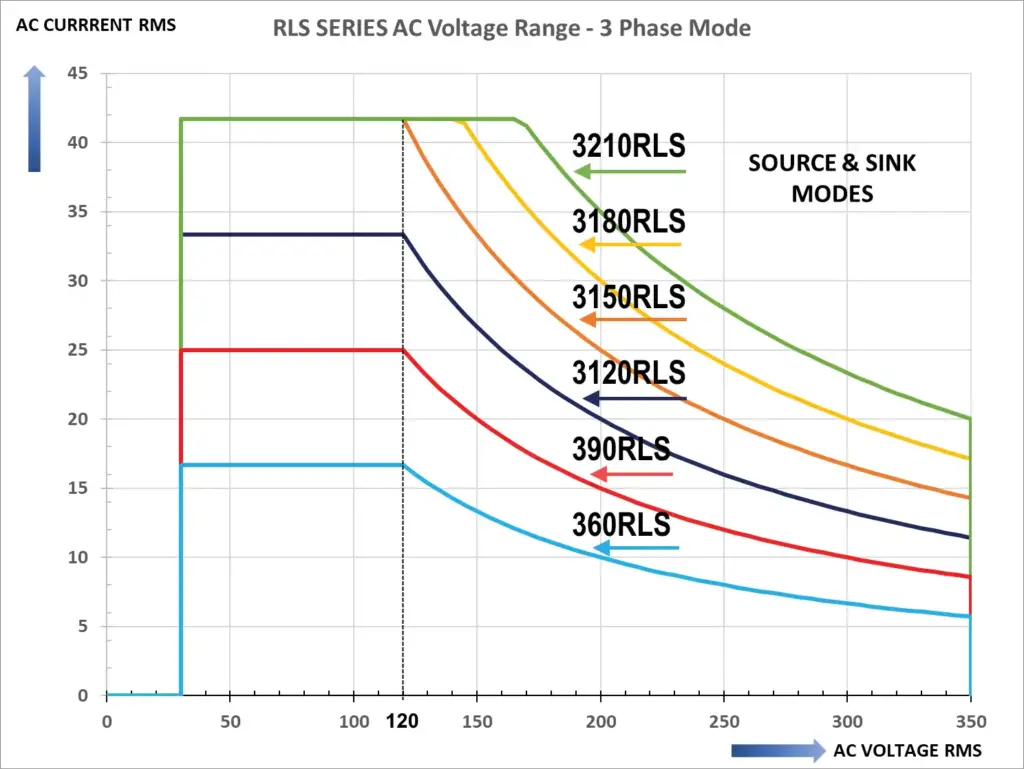

AC / DC Load with Constant Power Voltage Range

Accurately simulate the power grid with seamless transition of voltage ranges. A single constant power voltage range for both higher current at lower voltage and higher voltages at lower currents eliminating the need to switch between voltage ranges. This prevents potential disruptions in output power.

Wide operating envelope
More current at lower voltage
Test broad range of power
Seamless transition of input power

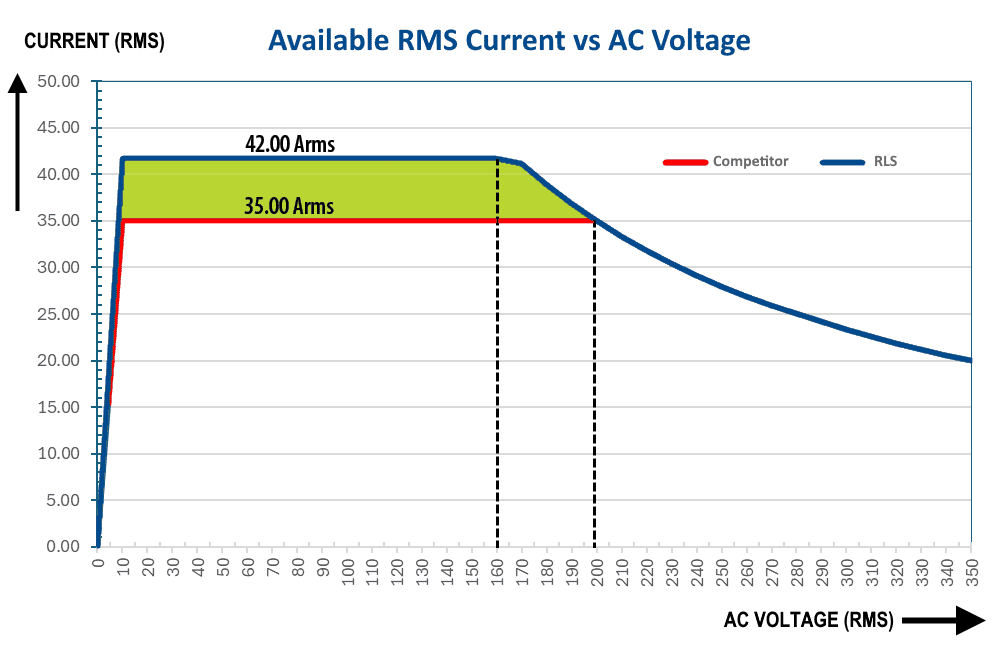

Highest Current Availability for AC Load Simulation

The RLS Regenerative Load Simulator provides a broader range of current eliminating the risk of over or under sizing the power source. This reduces the need for additional capital investment. The diagram to the right illustrates the RLS’s capability to provide 20% more current from 120V to 200V when compared to a typical unit that maxes out at 35A/phase.

More current at lower voltage
No over or undersizing the load
Reduce the need for additional capital

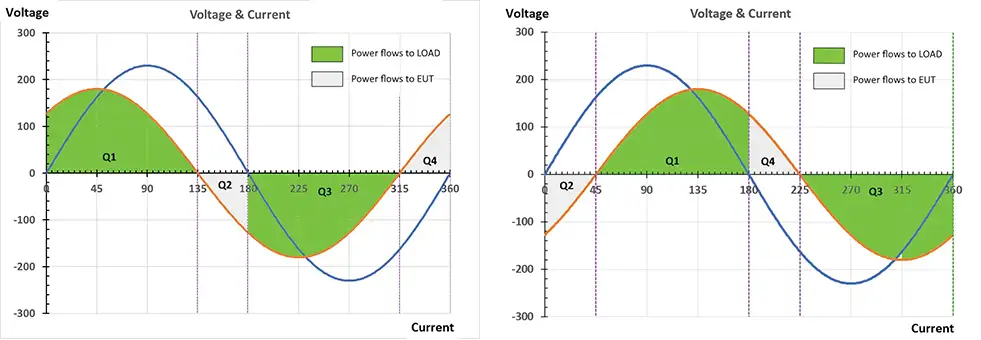

Full 4 Quadrant Operation for Leading & Lagging Power Flows

Fully test AC & DC Power with Bidirectional, 4 quadrant operation. The programmable AC or DC electronic load has 4-Quadrant capability so both true and apparent power can be drawn with programmable control over power factor, current crest factor, current waveshape etc.

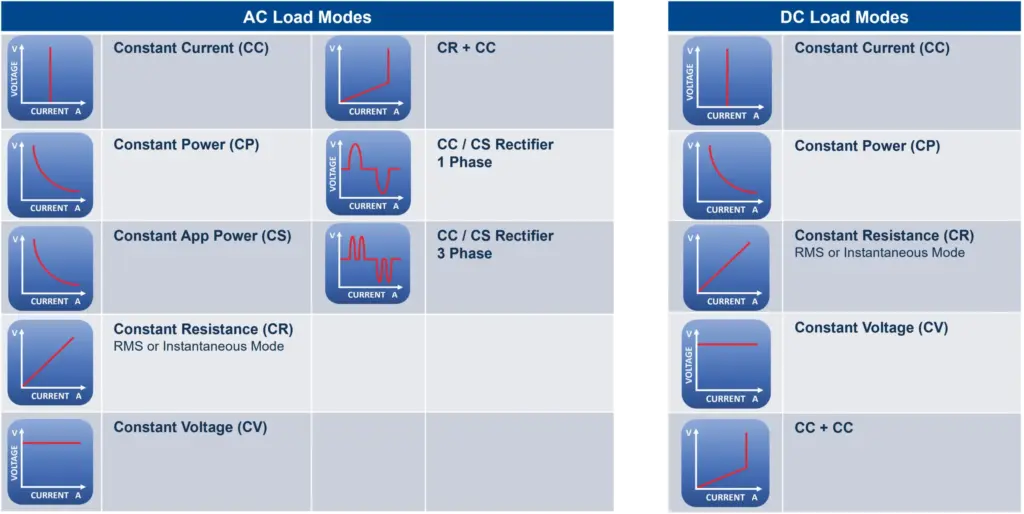

Several Emulation Modes for Simulation AC & DC Loads

Regenerative AC/DC Electronic Load capability with both AC and DC operating modes pushes the boundaries of your test environment. Simulate linear and non-linear loads (including rectified), inductive and capacitive loads.

AC Modes: Constant Current, Constant Power & Apparent Power, Constant Resistance, Constant Voltage, CC+CR, CC / CS Rectifier Mode 1ø & 3ø
DC Modes: Constant Current, Constant Power, Constant Resistance, Constant Voltage, CR+CC

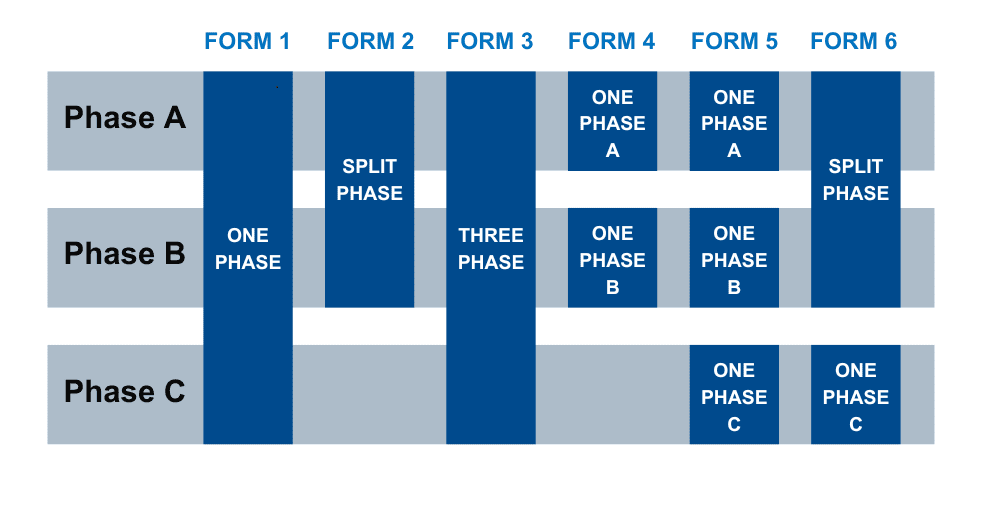

Most Flexible Input Configuration for AC/DC Load Simulation

Simultaneous AC and DC load operation of modes per phase(or channel), and the automatic switching of input modes provides test engineers with a unique capability and the highest degree of flexibility. AC, DC input configurations are available in single, split, three phase and multi-channels with optional isolated neutrals in AC and DC.

AC, DC configurations
Simultaneously test AC and DC,on separate phases
Full galvanic isolation from facility AC input to output and between output phases/channels also protects the user and the UUT.

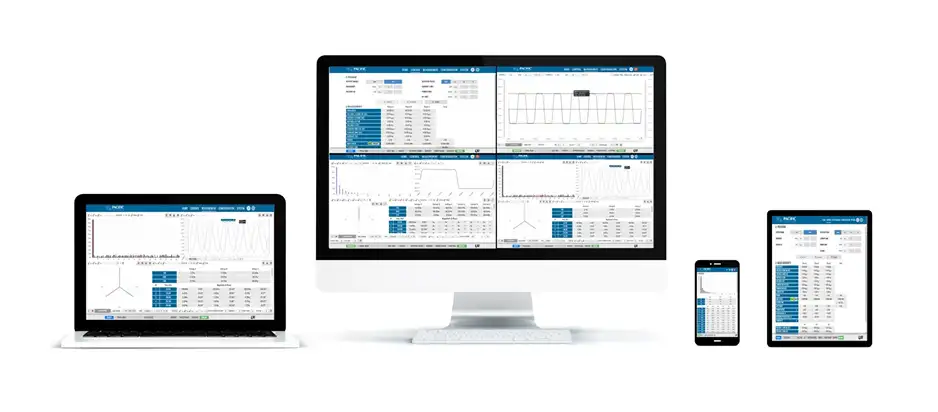

Simplify Testing with Smart Control, Built-In

Get access to SmartSource Suite, our proprietary built-in platform that allows full remote control, development, and execution of test sequences in real-time. Intelligently monitor, control, and manage testing using the intuitive embedded web browser interface on any mobile device

Access on any web browser in real-time
Enhanced visualization and reporting tools
View and control on multiple windows
Save time and increase productivity

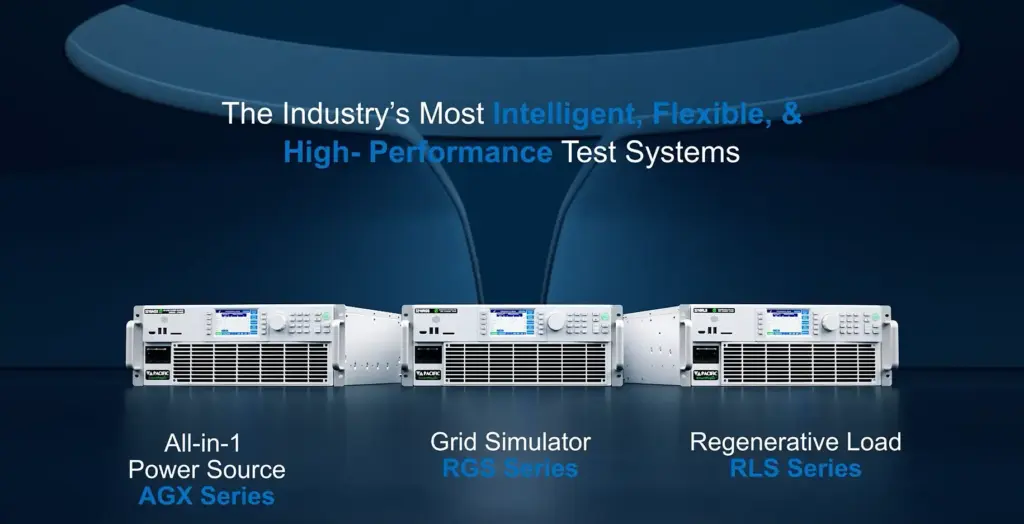

RLS Series Regenerative Load Product Intro Video

Bench or Rack Mount Models

Model	Rated Power (VA)	Output Form	Voltage Ranges (VAC/VDC)	Current (AAC/ADC)	Input Power Form	Rack Height	CTA
360RLS	6000	1,2,3 Ø	350 (L-N) / 500	17.0 / 17.30	3Ø	4U	Buy / Rent
390RLS	9000	1,2,3 Ø	350 (L-N) / 500	25.0 / 21.0	3Ø	4U	Buy / Rent
3120RLS	12000	1,2,3 Ø	350 (L-N) / 500	34.0 / 21.0	3Ø	4U	Buy / Rent
3150RLS	15000	1,2,3 Ø	350 (L-N) / 500	42.0 / 21.0	3Ø	4U	Buy / Rent
3180RLS	18000	1,2,3 Ø	350 (L-N) / 500	42.0 / 21.0	3Ø	4U	Buy / Rent
3210RLS	21000	1,2,3 Ø	350 (L-N) / 500	42.0 / 21.0	3Ø	4U	Buy / Rent

Parallel Systems

Model	Rated Power (VA)	Output Form	Voltage Ranges (VAC/VDC)	Current (AAC/ADC)	Input Power Form	Rack Height	CTA
3240RLS-4	24000	2,3 Ø	350 (L-N) / 500	68.0 / 42.0	3Ø	15U	Buy / Rent
3300RLS-4	30000	2,3 Ø	350 (L-N) / 500	84.0 / 42.0	3Ø	15U	Buy / Rent
3360RLS-4	36000	2,3 Ø	350 (L-N) / 500	84.0 / 42.0	3Ø	15U	Buy / Rent
3420RLS-4	42000	2,3 Ø	350 (L-N) / 500	84.0 / 42.0	3Ø	15U	Buy / Rent
3630RLS-4	63000	2,3 Ø	350 (L-N) / 500	126.0 / 63.0	3Ø	15U	Buy / Rent
3840RLS-4	84000	2,3 Ø	350 (L-N) / 500	168.0 / 84.0	3Ø	28U	Buy / Rent
31050RLS-4	105000	2,3 Ø	350 (L-N) / 500	210.0 / 105.0	3Ø	28U	Buy / Rent
31260RLS-4	126000	2,3 Ø	350 (L-N) / 500	252.0 / 126	3Ø	28U	Buy / Rent
31470RLS-4	147000	2,3 Ø	350 (L-N) / 500	294.0 / 147	3Ø	40U	Buy / Rent
31680RLS-4	168000	2,3 Ø	350 (L-N) / 500	336.0 / 168	3Ø	40U	Buy / Rent

Notes:
- For higher power levels up to 756kW, contact Factory for more details.
- All RLS models have a single voltage range with constant power profile. This eliminates the need for switching between a high and a low voltage range. If desired, a low voltage range can be simulated.
- Maximum current ratings shown are available up to maximum power point. Voltage and Current follow constant power profile so higher current at lower voltage and lower current at higher voltage is available.
- Three phase input: 380 ~ 480 VAC ± 10% input range. All models have active power factor corrected AC inputs. Models above 12kW require 380~480Vac Input service to deliver full power. 208-240Vac models are not available at this time.
- 19 Inch Cabinet not included with parallel system kits. Contact us for integrated cabinet systems.
- Lower power RLS models can be upgraded to higher power levels using our POWER FLEX upgrade program.
- Contact customer service for details.
