The FVC2k Series frequency converters provide a robust and cost effective solution for delivering AC power from 5kVA to 1000kVA, with adjustable voltage and frequency to suit a wide range of applications.
They offer low distortion, three phase output along with dual voltage ranges and overload capability, making them well suited for testing in avionics, transformers, motors, and pumps.
The system supports frequency conversion from 50Hz or 60Hz up to 400Hz, while maintaining stable and regulated AC power. This makes the FVC2k Series ideal for limit and immunity testing of AC powered equipment.
5kVA to 1MVA
Up to 1000VL-L
40Hz-200Hz
Delivers clean, high-quality AC power using advanced switching technology
Exceptionally responsive to sudden load changes (<1ms for a 50% load step
Intuitive front panel with LED display and multi-turn controls. Remote PC control via RSā232/485, USB, LAN, or fiber
Single or dual voltage ranges with overload capability up to 200% for broad range of test set ups
Using a full bridge output inverter topology and isolation output transformer, the FVC Series provides efficient and reliable solid-state power conversion in non-regenerative mode. A regenerative version is available as well.
The FVC is available with either a single output voltage range or with two, selectable output voltage ranges. This is illustrated in the diagram to the right.

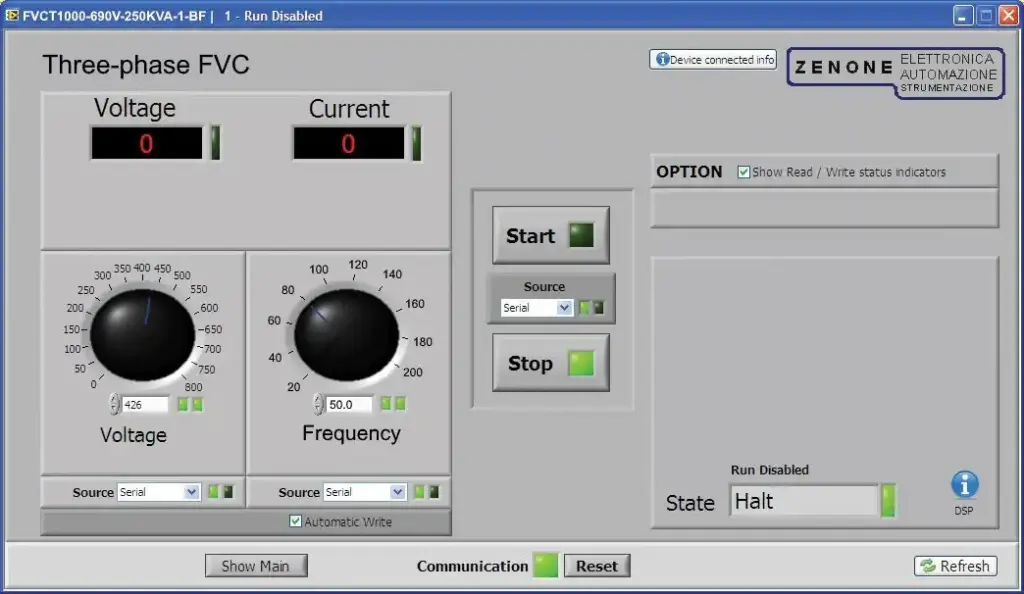

Intuitive Windows based AM Manager control software turns any PC into a remote operator console. The AM Manager software provided a higher level of power supply control than available from the front panel.
| Single V Range |
| 150V / 87V |
| 300V / 173V |
| 500V / 289V |
| 690V / 400V |
| 900V / 520V |
| 1000V / 577V |
| Dual V Ranges |
| 150V/300V / 87V/173V |
| 300V/600V / 173V/346V |
| 345V/690V / 200V/400V |
| 450V/900V / 260V/520V |
| 500V/1000V / 289V/577V |
| Vxxxx |
| 5kVA |
| 10kVA |
| 15kVA |
| 20kVA |
| 30kVA |
| 50kVA |
| 75kVA |
| 100kVA |
| 150kVA |
| 200kVA |
| 300kVA |
| 400kVA |
| 500kVA |
| 600kVA |
| /M-AI-SW Software FVC Manager |
| /PCR Interface for parallel operation |
| /LAN LAN interface |
| /FIB Optic fiber interface |
| /PID PID Software |
| /USB USB interface |
| /Vxxxx Special voltage range |
