GI-2K Series

Precision High AC Current Source, up to 1MVA

Buy / Rent
Datasheet

The GI-2k Series is a high power AC current source, or generator, designed for both continuous and pulsed operation, delivering up to 50kA and 1MVA. It provides stable output across a frequency range of 40Hz to 200Hz, with selectable current ranges to suit different testing requirements.

A user friendly LCD interface makes operation straightforward, while support for remote control allows easy integration into automated systems. The series also offers current amplification capabilities and is well suited for manufacturing environments.

Designed for large scale industrial testing, equipment validation, research and development, and product testing, the GI-2k Series is particularly effective for circuit breaker evaluation. It enables precise trip time measurement through programmable test sequences, ensuring accurate and repeatable results.

Why Choose GI-2K Series

High Current

Continuous or Pulsed Current, ideal for large-scale, industrial equipment, R&D, production, and circuit breaker testing

Flexible Waveform Generation

Supports sinusoidal and arbitrary currents with up to three selectable ranges

Precision Testing

User-friendly, Built-in sequencer and timer measure trip times (up to 30 steps), and 1ms resolution

Advanced Control & Integration

Remote control (RS232/RS485, optional USB/LAN/fiber), analog inputs, and digital I/Os for lab and production automation

Key Specifications

  • Output Current: up to 50kA
  • Output Frequency: 40-200Hz
  • Single and Three-Phase Systems
  • Possibility of Paralleling for higher current
  • Continuous or Pulse Mode Operation
  • Up to 3 Output Current Ranges
  • Integrated Timer and Sequencer with up to 30 steps
  • Measurement of Trip Time for Fuse and CB test
  • Ramp, Drop-out, Loop Modes
  • Easy Maintenance and Calibration
  • Access to PID Regulation Parameters
  • Web Browser Control Interface via LAN
  • Customized Units on request

High Current AC Current Sources

AC Current Applications

Circuit breaker and switch testing, R&D and product validation, current amplification, automated production testing, custom waveforms, thermal/magnetic and heating tests, and instrument calibration.

  • Circuit breaker testing – precise trip-time measurement and custom test sequences.
  • R&D labs – research and development of electrical devices.
  • Final product testing – quality control and compliance verification.
  • Current amplification – using analog inputs to boost external signals.
  • Manufacturing line integration – automated testing via digital I/Os.
  • Custom waveform generation – sinusoidal or arbitrary current profiles for specialized tests.
  • Thermal and magnetic tests of switches, breakers, relays or fuses with trip-time measurements
  • Heating tests of electrical contacts
  • Tests of coils and transformers
  • Tests and calibration of measurement instruments

Intuitive Front Panel Controls

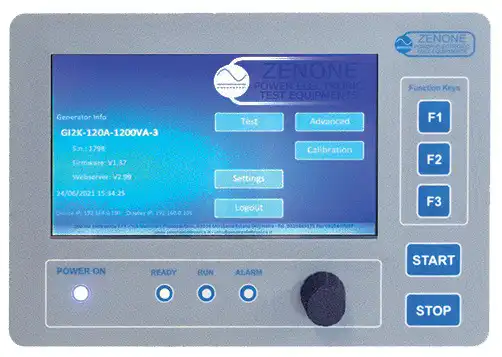

The unit features a sealed, splash-proof membrane keypad and large backlit LCD for easy control and clear display of settings and results. Front-panel programming allows test sequences to be set and locked, with trip current and duration measured to millisecond resolution.

User-Friendly AL Manager Software

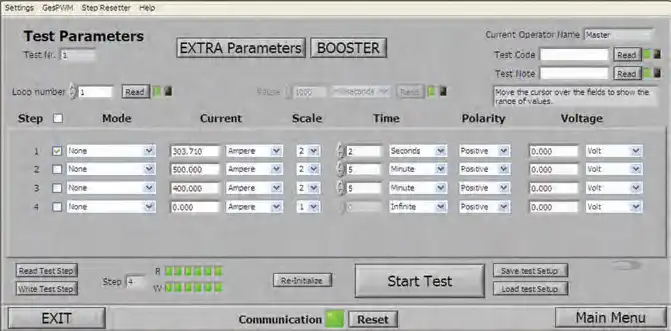

The optional GI-Software allows remote control of the GI-IS Series through various available interfaces. Test sequences can be created and saved for engineering or production use.

Cabinet Systems

Power Module
  • 500VA
  • 1200VA
  • 2500VA
  • 5000VA
  • 7500VA
  • 10kVA
  • 15kVA
  • 20kVA
  • 30kVA
  • 40kVA
  • 50kVA
  • 60kVA
  • 80kVA
  • 100kVA
  • 120kVA
  • 150kVA
Current (Continuous)
  • 10A
  • 50A
  • 120A
  • 240A
  • 350A
  • 500A
  • 750A
  • 1000A
  • 2000A
  • 4000A
  • 5000A
  • 6000A
  • 8000A
  • 10000A
  • 12000A
  • 15000A
  • 20000A
Current (Pulsed)
  • 900A
  • 1300A
  • 2500A
  • 3500A
  • 5000A
  • 6000A
  • 8000A
  • 10000A
  • 15000A
  • 20000A
  • 30000A
Option Description
/PulsePulse mode
/M GI SWSoftware including arbitrary waveforms for single phase unit
/M3 GI SWSoftware including arbitrary waveforms for 3 phase system
/PIDPID software, access to PID regulation parameters
/Rack19” Rack instead of cabinet (available up to 5kVA)
/3 Rack19” Rack with connections for 3 phase systems
/WheelsCabinet with wheels max weight 800kg
/LANLAN interface
/USBUSB interface
/FOFiber Optic interface
/ROUTRear output connections
/FOUTFront output connections
/SOUTSpecial output connections
/TCaseTablet case
/AxxxxSpecial output current range (P.E. A8000 = 8000A f.s.)
/MRangeManual Switching of current range
/ARangeAutomatic Switching of current range
/IPSpecial IP protection
/ATE UnitWithout Front panel control and display, for system integration
Title
Document Type
Zenone GI2k Series AC Current Source Datasheet
Datasheet
Zenone GI2k Series AC Current Source Manual
Manual
