  • Bi-Directional DC
×

EA-PUB/PUL/PU Series

Industrial, Bidirectional DC Power, up to 3.84MW

Buy / Rent
Datasheet

Delivering up to 300kW per rack, the EA-10000 Industrial Series provides a powerful and efficient solution by combining bidirectional, regenerative, and conventional DC power units within a single platform. With energy recovery exceeding 96%, it helps reduce operating costs while supporting efficient integration of multiple units through a unified firmware system.

Designed for high power and regenerative performance, the EA-PUB returns energy back to the grid with more than 96% efficiency, making large scale industrial battery emulation both cost effective and more sustainable.

The series includes three power unit types: PUB for bidirectional operation, PUL as a regenerative load, and PU as a conventional power supply.

Why Choose EA-PUB/PUL/PU

Industrial, Higher Power

PUB bidirectional power supply ideal for Battery Emulation for EV, powertrain, ESS, energy applications

High Power Density

Modular scalability in fewer devices 4U or 6U scaled up to 3.84MW. Get up to 300kW in 42U

Regenerative Power

The PUB and PUL can recover up to 96.5% of absorbed energy saving costs and energy

arrow_all_fill [#ffffff]Created with Sketch.

True Autoranging

Get maximum power across a wide range of voltages and currents, enhancing flexibility in testing applications

Key Specifications

  • 6U Power with up to 60kW in 21 models
  • 4U Power with up to 30kW in 29 models
  • Systems scalable to higher power up to 3.84MW
  • Voltage Range: Varies by model; typically up to 2000V
  • Current Range: Varies by model; typically up to 1000A
  • Regenerative Operation: Two-quadrant operation with energy recovery efficiency over 96%
  • Industrial Series comes in Programmable bidirectional DC power supplies (PUB), and Regenerative electronic loads (PUL), Programmable DC power supplies (PU)
  • Powerful rack performance & efficiency
  • Fewer units for a high-power system
  • Cooling Options: Air-cooled and water-cooled models available.
  • Interface Options: Profinet, Modbus, Ethernet, with optional water cooling.
  • Form Factor: 19″ slide-in housing, suitable for rackmount integration.
  • DC input / output with autoranging
  • Digital (FPGA) controlled DC input / output U – I – P – R
  • Master-Auxiliary-Bus and Share-Bus
  • To make a multi-device system behave like a single device
  • Emergency stop (machine standards EN60204-1)
  • AC mains input with extended range (380V – 480V, 3ph AC)
  • Built-in interfaces: Ethernet, USB, Analog

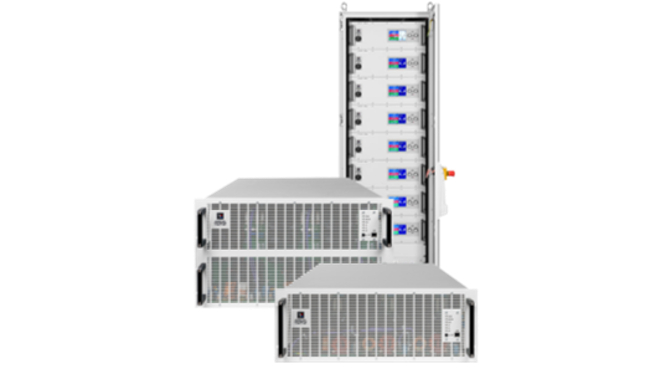

Modular, High Power in Fewer Units

Bidirectional DC Power Supply Ideal for Battery Emulation

The Tektronix-EA PUB Series bidirectional DC power supplies emulate real battery behavior with programmable voltage, current, and resistance. This enables safe, repeatable testing of EV components, storage systems, and electronics—without physical batteries—while regenerative recovery improves efficiency.

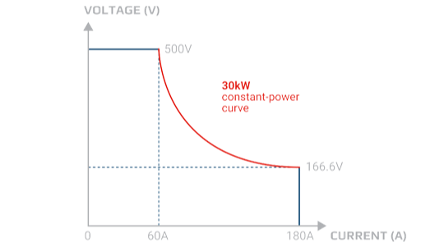

Autoranging for Seamless Power

The Tektronix-EA-PUB/PUL/PU Series provides autoranging, delivering maximum power across a wide range of voltages and currents. Unlike traditional power supplies, which only reach full power at maximum voltage and current, autoranging ensures your battery tester maintains full output under real-world conditions. This allows a single tester to handle multiple voltage and current combinations.

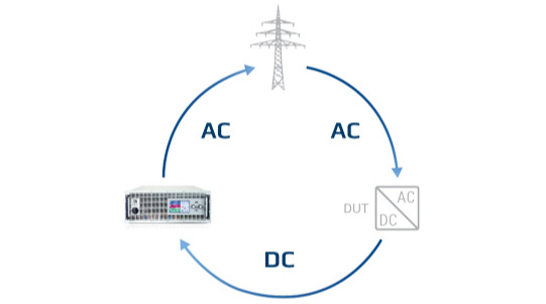

Regenerative Battery Testing for Energy Savings

The PUB and PUL load models have regenerative technology that recovers up to 96% of the energy used during testing. Instead of wasting power as heat like traditional loads, recovered energy is fed back into the local grid—or even the public grid—reducing facility costs and improving test efficiency.

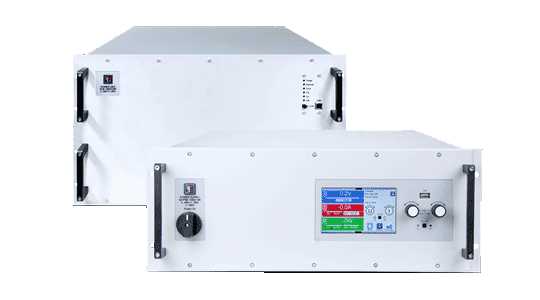

Optional Water Cooling (4U & 6U)

Water-cooled models ensure stable operation in harsh industrial environments, efficiently dissipate heat, reduce noise, and maintain reliability under challenging conditions.

Featured Video

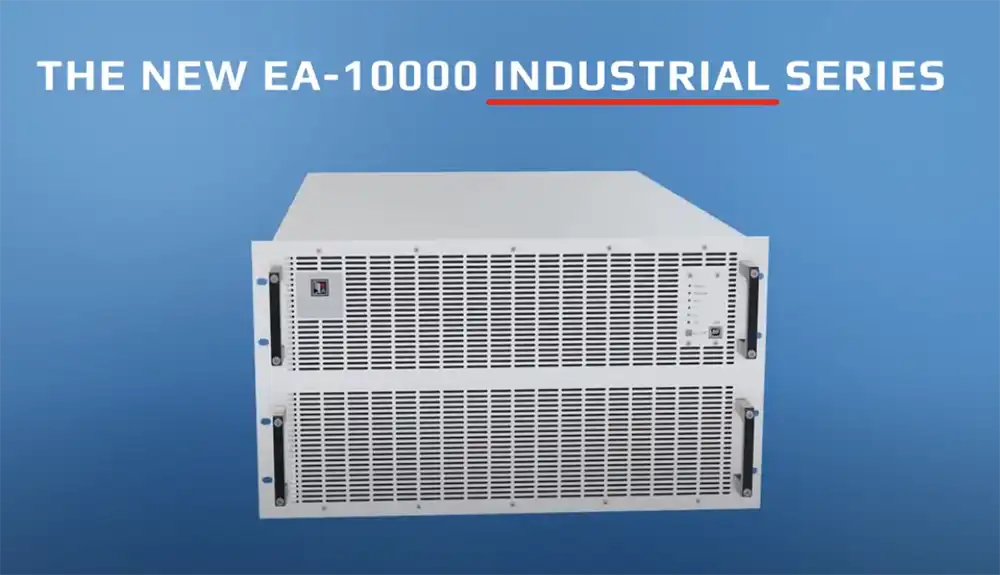

EA-PUB Industrial Bidirectional DC Power Product Intro Video

Watch Now

EA-PU 10000 6U

Model Power Voltage Current Range CTA
EA PU 10360 480 6U 0–60 kW 0–360 V 0–480 A Buy / Rent
EA PU 10500 360 6U 0–60 kW 0–500 V 0–360 A Buy / Rent
EA PU 10750 240 6U 0–60 kW 0–750 V 0–240 A Buy / Rent
EA PU 10920 250 6U 0–60 kW 0–920 V 0–250 A Buy / Rent
EA PU 11000 160 6U 0–60 kW 0–1000 V 0–160 A Buy / Rent
EA PU 11500 120 6U 0–60 kW 0–1500 V 0–120 A Buy / Rent
EA PU 12000 80 6U 0–60 kW 0–2000 V 0–80 A Buy / Rent

EA-PU 10000 4U

Model Power Voltage Current Range CTA
EA PU 10060 1000 4U 0–30 kW 0–60 V 0–1000 A Buy / Rent
EA PU 10080 1000 4U 0–30 kW 0–80 V 0–1000 A Buy / Rent
EA PU 10200 420 4U 0–30 kW 0–200 V 0–420 A Buy / Rent
EA PU 10360 240 4U 0–30 kW 0–360 V 0–240 A Buy / Rent
EA PU 10500 180 4U 0–30 kW 0–500 V 0–180 A Buy / Rent
EA PU 10750 120 4U 0–30 kW 0–750 V 0–120 A Buy / Rent
EA PU 10920 125 4U 0–30 kW 0–920 V 0–125 A Buy / Rent
EA PU 11000 80 4U 0–30 kW 0–1000 V 0–80 A Buy / Rent
EA PU 11500 60 4U 0–30 kW 0–1500 V 0–60 A Buy / Rent
EA PU 12000 40 4U 0–30 kW 0–2000 V 0–40 A Buy / Rent

EA-PUB 10000 6U

Model Power Voltage Current Range CTA
EA PUB 10360 480 6U 0–60 kW 0–360 V 0–480 A Buy / Rent
EA PUB 10500 360 6U 0–60 kW 0–500 V 0–360 A Buy / Rent
EA PUB 10750 240 6U 0–60 kW 0–750 V 0–240 A Buy / Rent
EA PUB 10920 250 6U 0–60 kW 0–920 V 0–250 A Buy / Rent
EA PUB 11000 160 6U 0–60 kW 0–1000 V 0–160 A Buy / Rent
EA PUB 11500 120 6U 0–60 kW 0–1500 V 0–120 A Buy / Rent
EA PUB 12000 80 6U 0–60 kW 0–2000 V 0–80 A Buy / Rent

EA-PUB 10000 4U

Model Power Voltage Current Range CTA
EA PUB 10060 1000 4U 0–30 kW 0–60 V 0–1000 A Buy / Rent
EA PUB 10080 1000 4U 0–30 kW 0–80 V 0–1000 A Buy / Rent
EA PUB 10200 420 4U 0–30 kW 0–200 V 0–420 A Buy / Rent
EA PUB 10360 240 4U 0–30 kW 0–360 V 0–240 A Buy / Rent
EA PUB 10500 180 4U 0–30 kW 0–500 V 0–180 A Buy / Rent
EA PUB 10750 120 4U 0–30 kW 0–750 V 0–120 A Buy / Rent
EA PUB 10920 125 4U 0–30 kW 0–920 V 0–125 A Buy / Rent
EA PUB 11000 80 4U 0–30 kW 0–1000 V 0–80 A Buy / Rent
EA PUB 11500 60 4U 0–30 kW 0–1500 V 0–60 A Buy / Rent

EA-PU 10000 6U

Model Power Voltage Current Range CTA
EA PUL 10360 480 6U 0–60 kW 0–360 V 0–480 A Buy / Rent
EA PUL 10500 360 6U 0–60 kW 0–500 V 0–360 A Buy / Rent
EA PUL 10750 240 6U 0–60 kW 0–750 V 0–240 A Buy / Rent
EA PUL 10920 250 6U 0–60 kW 0–920 V 0–250 A Buy / Rent
EA PUL 11000 160 6U 0–60 kW 0–1000 V 0–160 A Buy / Rent
EA PUL 11500 120 6U 0–60 kW 0–1500 V 0–120 A Buy / Rent
EA PUL 12000 80 6U 0–60 kW 0–2000 V 0–80 A Buy / Rent

EA-PUL 10000 4U

Model Power Voltage Current Range CTA
EA PUL 10060 1000 4U 0–30 kW 0–60 V 0–1000 A Buy / Rent
EA PUL 10080 1000 4U 0–30 kW 0–80 V 0–1000 A Buy / Rent
EA PUL 10200 420 4U 0–30 kW 0–200 V 0–420 A Buy / Rent
EA PUL 10360 240 4U 0–30 kW 0–360 V 0–240 A Buy / Rent
EA PUL 10500 180 4U 0–30 kW 0–500 V 0–180 A Buy / Rent
EA PUL 10750 120 4U 0–30 kW 0–750 V 0–120 A Buy / Rent
EA PUL 10920 125 4U 0–30 kW 0–920 V 0–125 A Buy / Rent
EA PUL 11000 80 4U 0–30 kW 0–1000 V 0–80 A Buy / Rent
EA PUL 11500 60 4U 0–30 kW 0–1500 V 0–60 A Buy / Rent
EA PUL 12000 40 4U 0–30 kW 0–2000 V 0–40 A Buy / Rent
Title
Document Type
EA-PUB 10000 4U 30KW Programmable Bidirectional DC Power Supply
Datasheet
EA-PUB 10000 6U – Programmable Bidirectional DC Power Supply
Datasheet
Video: EA-PUB Industrial Series 10000 Overview
Video

FAQ

The EA PUB Series is a industrial bidirectional programmable DC power supply that can both source power to a device and absorb power from it, enabling efficient two‑way energy flow for advanced DC testing. PSB Series power starts from 30kW to 60kW in single unit.

Yes. In sink mode, the EA PUB Series acts as a programmable electronic load, eliminating the need for a separate load instrument in many test setups.

Yes. The EA PUB Series is designed to support smooth and fast transitions between sourcing and sinking, enabling realistic simulation of real‑world operating conditions.
