EMC Compliance Test Systems
From pre-compliance to full certification testing, our EMC test systems support a wide range of applications – from R&D validation to certified compliance testing. Caltest Instruments offers high-performance solutions from leading manufacturers such as Pacific Power Source.
Our turnkey systems enable harmonics, flicker, voltage dips, and immunity testing in line with IEC and EN standards. Designed for accuracy and repeatability, these systems ensure reliable results across lab and certification environments.
EMC Test Systems
ECTS SERIES
Harmonics & Flicker Test System
Up to 75A
The ECTS2 Series Harmonics and Flicker Test Systems ensure full lEC compliance testing for power line emissions and immunity, with single- or three-phase models from 750VA to 110KVA.
Power: 800VA to 110KVA+
Form: 1, 2, and 3 phase
Voltage: 0 up to 440Vac L-N/762Vac L-L or +650Vd
Frequency: 15Hz-1000Hz

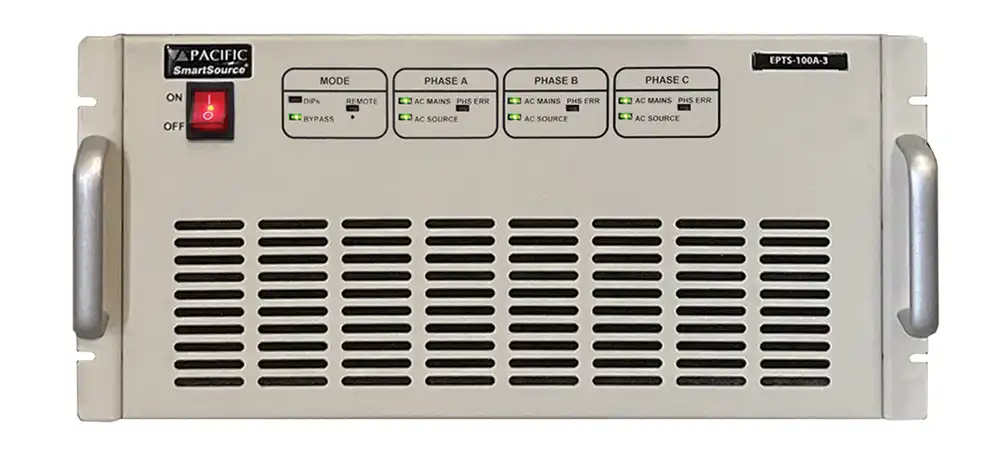

EPTS SERIES
Voltage Dips & Interruptions Tester
Up to 100A
The ECTS2 Series Harmonics and Flicker Test Systems ensure full EC compliance testing for power line emissions and immunity, with single- or three-phase models from 750VA to
110KVA.
Power: 16A, 16A/phase; 32A, 32A/phase; 75A, 75A/phase; 100A, 100A/phase
Form: 1 or 3 phase
Select the EMC test system that is right for you
FAQ
EMC test systems support key standards such as IEC 61000-3-2, 61000-3-3, 61000-3-11, 61000-3-12 for harmonics and flicker, and IEC 61000-4-11 / 4-34 for voltage dips and interruptions testing.
Harmonics testing evaluates current distortion caused by electrical equipment, while flicker testing measures voltage fluctuations that can impact grid stability and equipment performance.
EMC systems simulate controlled voltage drops, short interruptions, and variations to verify equipment immunity and ensure compliance with international EMC standards.
Yes, these systems are suitable for both pre-compliance validation in R&D labs and full compliance testing in accredited certification environments.
EMC testing is critical for automotive, EV, aerospace, industrial electronics, renewable energy, and consumer electronics sectors across India.
Featured Resources
Access our resource library for datasheets, application notes, webinars, and more.
