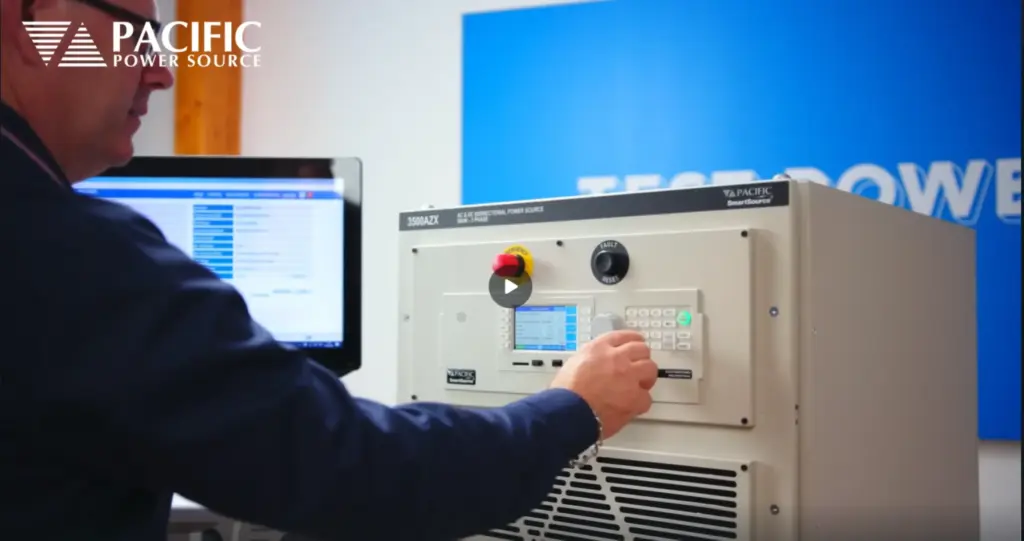

The AZX Series is a regenerative 4-quadrant AC and DC power source that functions as an AC voltage source, DC power supply, current source, AC/DC load, and PHIL interface in a single unit. This regenerative power source provides 90% energy recovery to reduce operating costs. From 30kVA single cabinets to 1.1MW+ three-phase systems, the AZX provides unmatched performance for the most versatile and demanding test applications.
Up to 1.1MW+
Dual Range
Up to 1,000Hz
AC & DC Power Source, Current Source, Load & PHIL Amplifier included
Dual voltage range and high current availability within a single product
Power Hardware in the Loop with <50µs latency for real-time simulation
AC, DC, AC+DC, DC+AC, and 6-form configurations for multi-channel capability

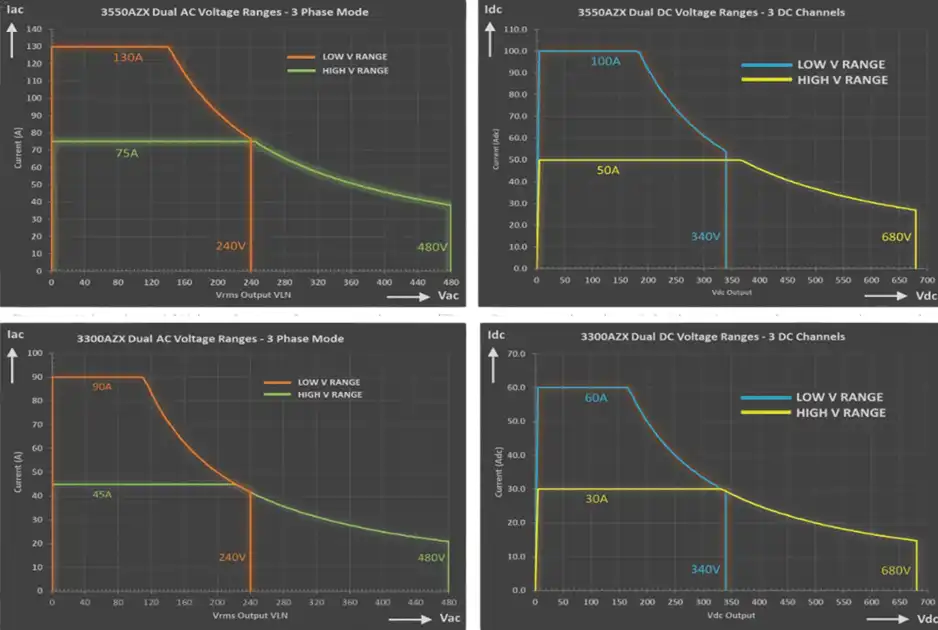

The AZX series supports both low and high voltage ranges for AC or DC. Test accurately with seamless transition of voltage ranges. The constant power voltage range for both higher current at lower voltage and higher voltages at lower currents eliminates the need to switch between voltage ranges. This prevents potential disruptions in output power.

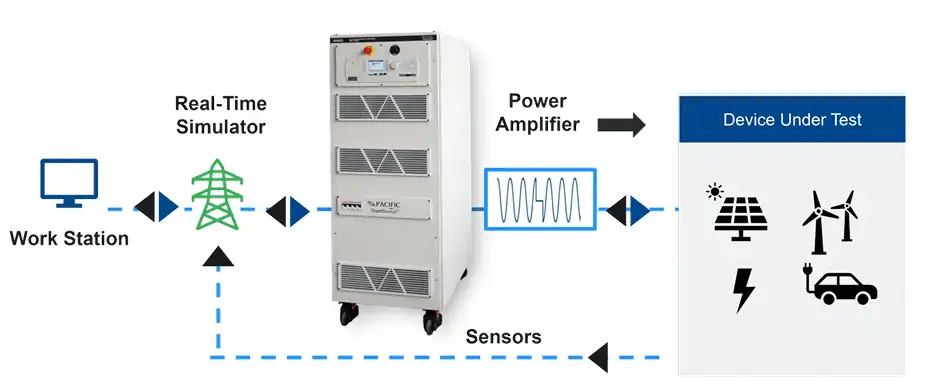

For real-time Power Hardware in the Loop (HIL) simulation applications, the AZX offers a high speed set of analog inputs and outputs with fast output response. This analog interface provides high speed input for controlling frequency, voltage or current and waveshape. Voltage and Current output capture signals are returned to the Real Time Simulation System.

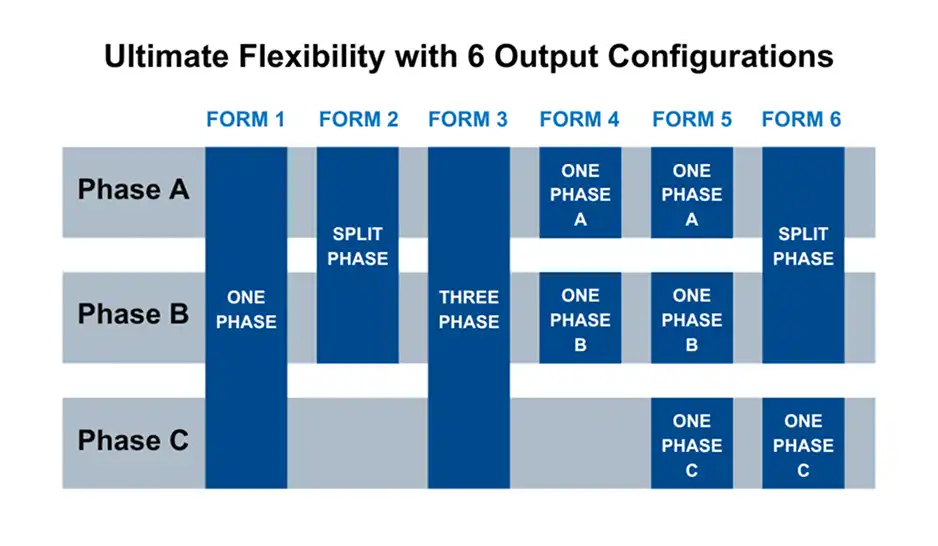

Simultaneous AC and DC operation of modes per phase(or channel), and the automatic switching of output modes provides test engineers with a unique capability and the highest degree of flexibility. AC, DC, AC+DC, DC+AC output configurations are available in single, split, three phase and multi-channels with optional isolated neutrals in AC and DC.
For applications requiring more than 550kW of three phase power, a dedicated Three-Phase Programmable AC Power Source Cabinet System is available that controls three high power AZX single phase power multi-cabinet AZX clusters to create a system configuration exceeding 1MW of programmable power.
This state-of-the-art power cabinet solution is designed for high power applications requiring precise and independent control of each AC phase.
This system consists of three multi-cabinet AZX clusters and one Controller Cabinet that routes power from all other cabinets to a point of common connection for the end-user’s three phase load.
Each phase cluster is dedicated to delivering one phase of the three-phase output, all seamlessly synchronized and controlled by a centralized three-phase controller unit in the Controller Cabinet.

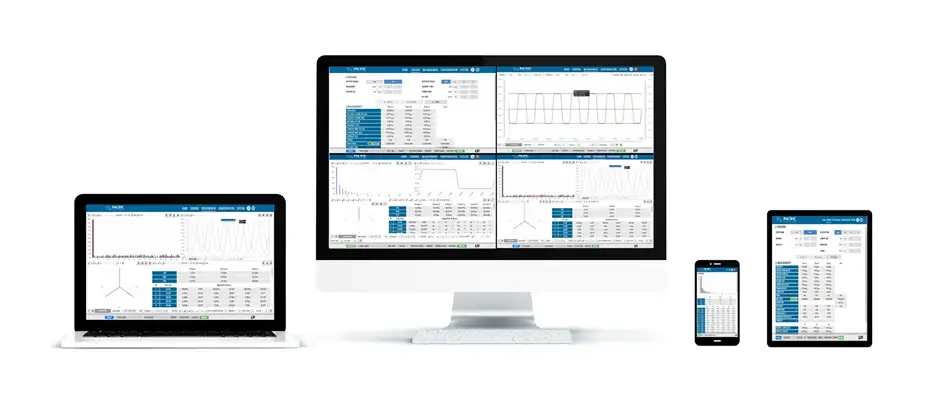

Get access to SmartSource Suite, our proprietary built-in platform that allows full remote control, development, and execution of test sequences in real-time. Intelligently monitor, control, and manage testing using the intuitive embedded web browser interface on any mobile device.
| Model | Rated Power (W/VA) | Output Form | Output Volts (Vac/Vdc) |
Output Amps/Phs (Aac/Adc) |
AC Input | Units/Height | Weight (LBS/KG) | CTA |
|---|---|---|---|---|---|---|---|---|
| 3300AZX | 30000 | 1,2,3 Ø | 480 VLN / ±680 Vdc 240 VLN / ±340 Vdc |
45Arms / 30Adc 90Arms / 60Adc |
3Ø | 1 / 60" | 517/1140 | Buy / Rent |
| 3450AZX | 45000 | 1,2,3 Ø | 480 VLN / ±680 Vdc 240 VLN / ±340 Vdc |
65Arms / 40Adc 110Arms / 80Adc |
3Ø | 1 / 60" | 517/1140 | Buy / Rent |
| 3550AZX | 55000 | 1,2,3 Ø | 480 VLN / ±680 Vdc 240 VLN / ±340 Vdc |
75Arms / 50Adc 130Arms / 100Adc |
3Ø | 1 / 60" | 517/1140 | Buy / Rent |
| 3900AZX | 90000 | 1,2,3 Ø | 480 VLN / ±680 Vdc 240 VLN / ±340 Vdc |
130Arms / 80Adc 220Arms / 160Adc |
3Ø | 2 / 60" | 1034/2280 | Buy / Rent |
| 31100AZX | 110000 | 1,2,3 Ø | 480 VLN / ±680 Vdc 240 VLN / ±340 Vdc |
150Arms / 100Adc 260Arms / 200Adc |
3Ø | 2 / 60" | 1034/2280 | Buy / Rent |
| 31650AZX | 165000 | 1,2,3 Ø | 480 VLN / ±680 Vdc 240 VLN / ±340 Vdc |
225Arms / 150Adc 390Arms / 300Adc |
3Ø | 3 / 60" | 1551/3420 | Buy / Rent |
| 32200AZX | 220000 | 1,2,3 Ø | 480 VLN / ±680 Vdc 240 VLN / ±340 Vdc |
300Arms / 200Adc 520Arms / 400Adc |
3Ø | 4 / 60" | 2068/4560 | Buy / Rent |
